Drypower 5.12kWh Battery Package

Designed for smaller systems where the battery can be installed inside this package provides both the storage and DC distribution for a offgrid system.

Suited for our range of Victron packages.

Package Contents

• Drypower 51.2V 100Ah 5.12kWh Rack Mounted Battery Module
• Enepower Stackable Bracket to suit 4RU size Battery Modules
• 2 metre cable kit for Drypower DP-51100-R 51.2V 100Ah rack mount battery x 2
• Lynx Distributor (M10)
• Fusing

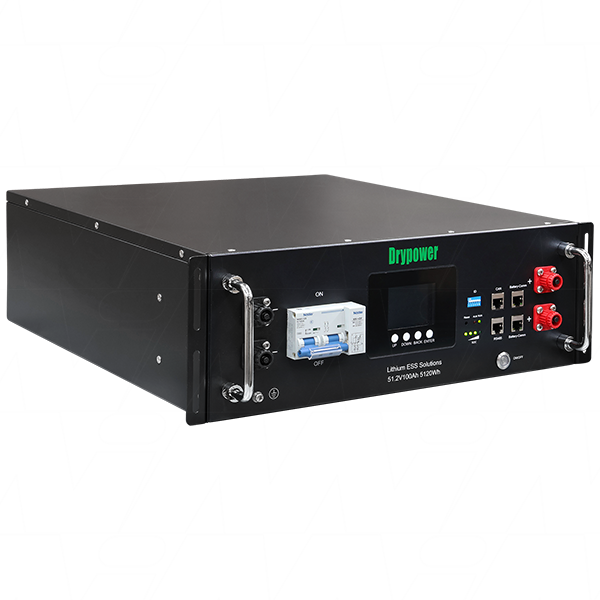

Drypower DP-51100-R 51.2V 100Ah 5.12kWh Rack Mounted Battery Module

The Drypower DP-51100-R rack mount battery module is a 4RU sized solution offering exceptional performance and service life.

Capable of delivering up to 6000 cycles to 80% DoD, the DP-51100-R features multiple battery protections such as the advanced BMS providing protections against over/under voltage, over/under temperature & short circuit, a circuit breaker with shunt trip/release feature designed to immediately cut power in a dangerous situation, and in-built twin fire arrestors as the last line of defence to ensure safe operation and swift fault mitigation.

Enepower Stackable Bracket to suit 4RU size Battery Modules

4RU sized stackable rack battery mounting bracket.
Capable of being stacked up to 8 modules high and features handy locating pins and interlocking buckles for added strength.
Suitable for use with Drypower DP-51100-R, DP-24200-R, DP-12400-R, Pylontech, US5000, Mictronix MPS-24-2.5 and more.

Drypower DP-ACC-CABLE KIT 2M

This Cable Kit is suitable for connecting the Drypower's DP-51100-R rack mount batteries to the Inverter/Charger
The cable kit comes with:
1 x 2 Metre Orange 25mm2 non-insulated cable with non-IP rated Surlok SLPHPA25BNR1 to M8 ring terminal termination
1 x 2 Metre Black 25mm2 non-insulated cable with non-IP rated Surlok SLPHPA25BNB2 to M8 ring terminal termination
1 x 3 Metre RJ45 communication cable.
1 x 3 Metre RJ45 linking cable.
Cables have 120A current capacity.

Lynx Distributor (M10)

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system.
